Conventional fire detectors

Description

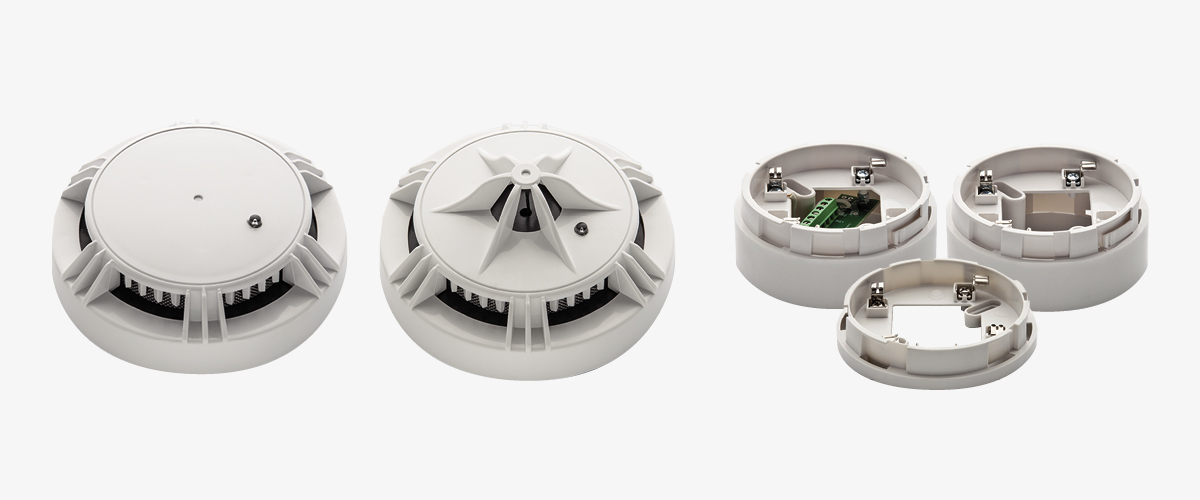

Smoke detectors for general application in conventional systems. Innovative electronic and mechanical design with locking extraction and ease of assembly. Low power consumption. Special immunity and resistance in difficult environments.

References

AUTOMATIC DETECTION

NDCT

Rate of rise heat detector with static response (57ºC) ,with low power consumption. Led status indicator and remote led indicator output. Diameter: 100 mm. EN 54-5 certified. Base not included.

NDCO

Optical smoke detector (photo-electric) with low power consumption. Self–checking and chamber maintenance signaling. Led status indicator and remote led indicator output. Diameter: 100 mm. EN 54-7 certified. Base not included.

NDCOT

Optical-Heat multisensor, combines the features of previous detectors to expand the detection range. Low power consumption. Led status indicator and remote led indicator output. Diameter: 100 mm. Base not included.

NDB

Low profile interchangeable mounting base with remote indicator connector and removal protection.

NDBA

High profile interchangeable mounting base with remote indicator connector and removal protection. ​

NDBASR

High profile interchangeable mounting base with voltage-free relay output. Power 12V.
